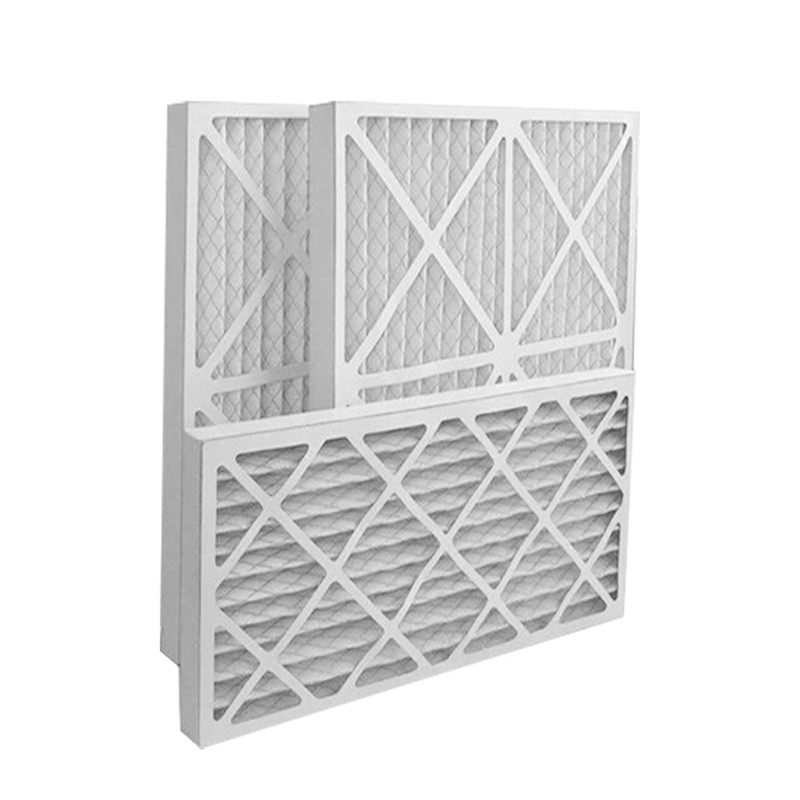

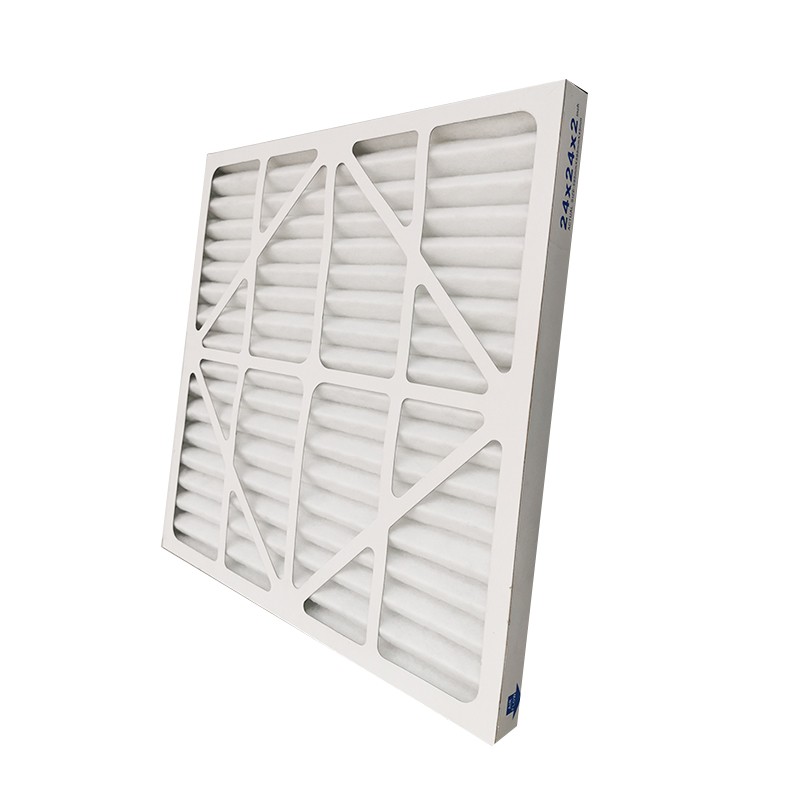

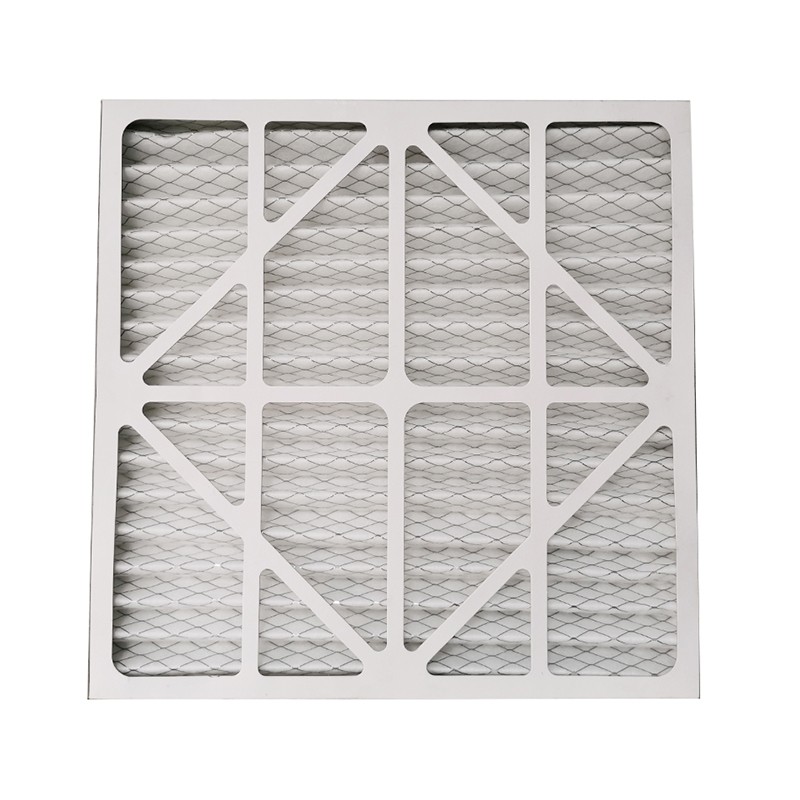

Paper Frame Air Filter

MERV 8\9\10\11 G3 G4

Customized size is available

Model	Width	Height	Depth	Filter area	Airflow and pressure drop		Number of pleat/inch
Model	Width	Height	Depth	Filter area	Airflow and pressure drop		(1inch=305mm)
	(mm)	(mm)	(mm)	(m2)	(m3/h&pa)
24×24×4	594	594	95	2.66	1700/18	3400/68	11
24×12×4	594	289	95	1.3	850/18	1700/68
24×20×4	594	492	95	2.2	1420/18	2840/68
20×20×4	492	492	95	1.82	1180/18	2360/68
20×16×4	492	391	95	1.45	935/18	1870/68
25×20×4	619	492	95	2.3	1480/18	2960/68
25×25×4	619	619	95	2.9	1860/18	3720/68
24×24×2	594	594	45	1.75	1700/20	3400/70	15
24×12×2	594	289	45	0.85	850/20	1700/70
24×20×2	594	495	45	1.46	1420/20	2840/70
24×18×2	594	445	45	1.31	1275/20	2550/70
20×20×2	495	495	45	1.21	1180/20	2360/70
20×18×2	495	445	45	1.09	1060/20	2120/70
20×16×2	495	394	45	0.97	935/20	1870/70
20×12×2	495	289	45	0.74	715/20	1430/70
25×20×2	622	495	45	1.52	1480/20	2960/70
25×18×2	622	445	45	1.37	1325/20	2650/70
25×16×2	622	394	45	1.18	1180/20	2360/70
24×24×1	597	597	22	0.88	1190/20	2380/70	16
24×12×1	597	292	22	0.43	590/20	1190/70
24×20×1	597	495	22	0.74	995/20	1990/70
20×20×1	495	495	22	0.6	825/20	1650/70
20×16×1	495	394	22	0.48	660/20	1325/70
25×20×1	622	495	22	0.76	1035/20	2070/70
25×16×1	622	394	22	0.61	825/20	1650/70
