Description

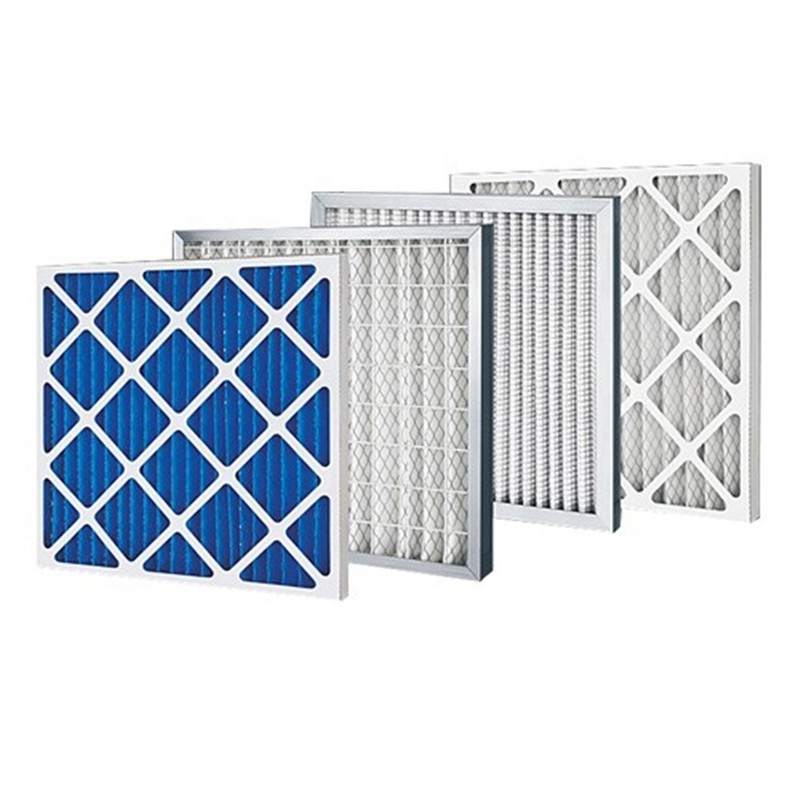

Home Cleaner With Customized Cardboard Frame Primary HVAC Dust Panel Furnace Pleated Pre Filter
Applications
1. Pre-filter for air conditioning and ventilation systems
2. Pre-filter for large air compressor
3. Clean room return air filter
4. Pre-filter for local high efficiency filtration device
Technical parameters:
1.YJ-G3 (G3 class filter)
|
Initial resistance |
Filtration efficiency (Air resistance) |
Standard EN779 |
|
≤30 |
85% |
G3 |
2.YJ-G4 (G4 class filter)
|
Initial resistance |
Filtration efficiency (Air resistance) |
Standard EN779 |
|
≤45 |
90% |
G4 |
Structure: The two-layer die cut cardboard or aluminum alloy frame combines with the filter media to form the simple and strong structure. Meanwhile, the filter adopts a V-shape pleated structure, the material usage is three times greater than common air filter, so the dust holding capacity is greater.
Filter paper: Special blended by non-woven fabrics and synthetic fibers with a fluffy structure, large dust holding capacity and low initial resistance
Filter media: The filter media is closely combined with the protection grid and processed into a contour, equal spacing filter pleat layer by special process, allowing the air to pass freely and evenly, so that the dust can be uniformly adsorbed on the entire media, thereby achieving high dust holding capacity.
Protection grid: The grid is a galvanized grid or wire grid to increase the strength of the filter pleats, effectively weakens the pleat jitter during use, thereby reducing secondary pollution.

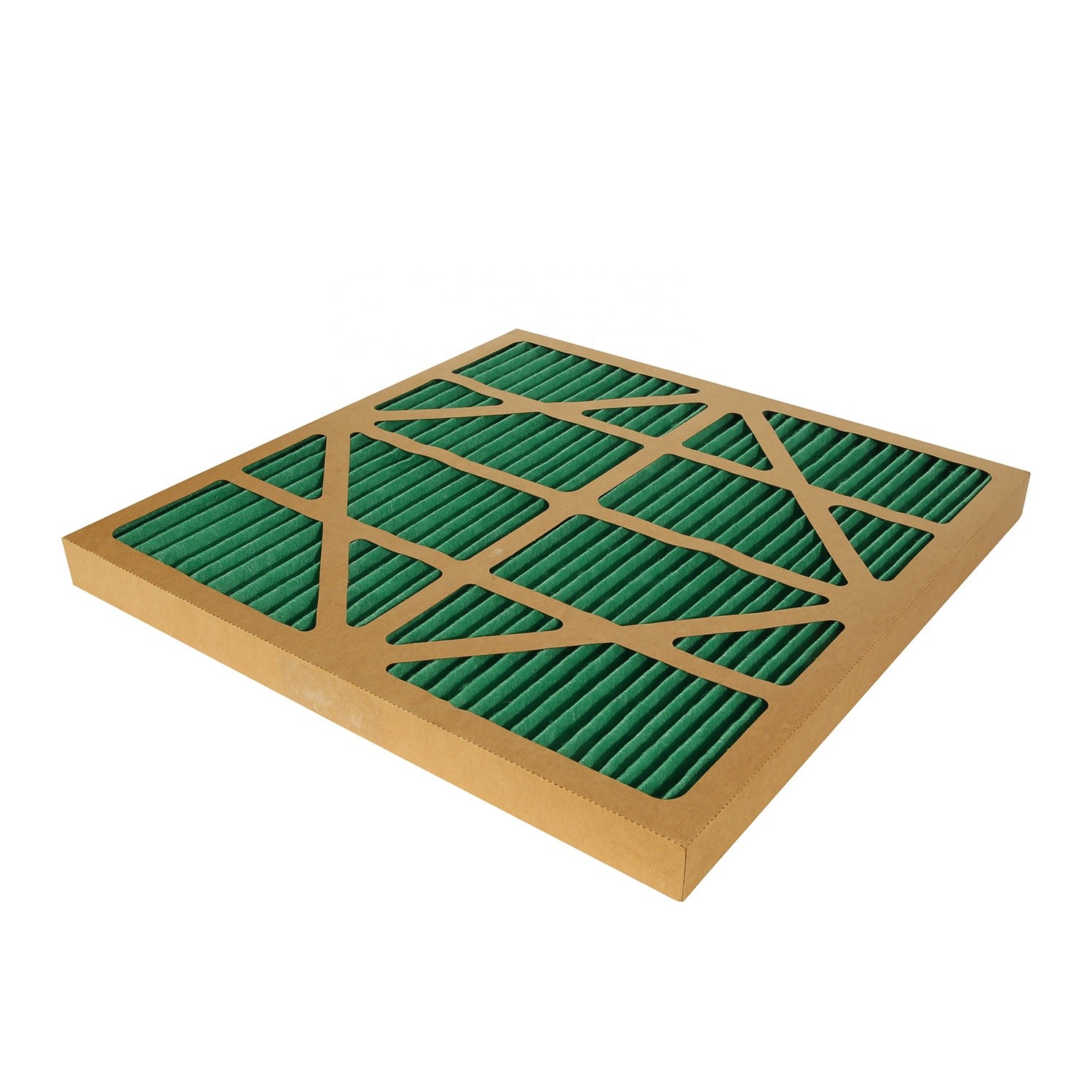

Cardboard frame: High-strength waterproof cardboard, each intersection and the filter media are closely connected, which enhances the filter's robustness and helps to maintain the flatness of the pleated filter media and the balance of the pleat spacing.
Aluminum alloy frame: 1.00mm thick aluminum profile enhanced by double-sided or single-sided galvanized protection grid support, can be repeatedly cleaned.
Optional specifications
Note: The following is the common size of the primary air filter. Youjie can also provide customized size air filters according to your requirements.
Common Specifications
Packaging & Shipping
Certifications
Company Information
FAQ
Q: Can the product be customized?
A:Yes, both the product and the packaging can be customized.
Q: How to pay?
A:Our company accepts various ways of payment, such as T/T , Paypal, Western Union etc.
Q: How long is the order lead time?
A:It depends on the order quantity. Usually it takes about 7 to 10 days for sample order and about 15-30 days for bulk order.
Q: What's your after-sales service?
A:Free online Technology Services 24h hours.
Q: How arrive to the factory?
A: If you fly, you can go to Guangzhou Baiyun international airport at first, then take the high way train from Guangzhou South station to Xiaolan Station, we can pick you up there.
